1ton Workshop Stationary Electric Hoist Jib Crane

Product Description

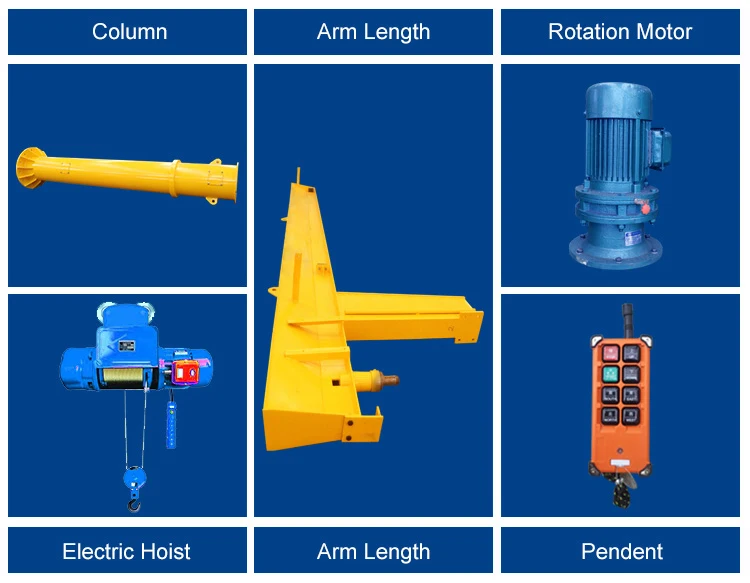

Jib Crane is a kind of light crane using with PK type electric Chain Hoist or CD, MD Electric hoist. It consists of the column,
the rotating arm, the cantilever drive unit and hoists. The lower end of the column is fixed by anchor bolts in the concrete
foundation. The boom slewing is driven by motor driving the reducer. The hoist runs back and forth on the cantilever beam.
Jib Crane has advantages of simple structure, easy operation, small space using, large working range. It is widely used in lifting
materials in production lines of machinery manufacturing, automotive making and shipbuilding. It is being used in warehouses,
docks, laboratories and other occasions. It is a ideal lifting equipment for the enterprises to improve efficiency and working
conditions.
Jib Cranes are light and intermediate working level, rated workload has 0.25t, 0.5t, 1t, 2t, 3t, 5t with total six specifications.
According to work specifications need the users can choose different types of cranes, lifting speed and running speed. The machine
has two forms of manipulation: motor-driven rotation and manual rotation. The rotation angle of the rotating arm needs to be
selected according to the use of premises such as 180 °, 270 °, 345 °, 360 °.

Detailed Images

Product Paramenters

Type	Capacity(t)	Rotation angle(℃)	L(mm)	R1(mm)	R2(mm)	H(mm)	h(mm)
BZD 0.25	0.25	360	4300	1100	4000	3800	3000
BZD 0.5	0.5	360	4300	1100	4000	3900	3000
BZD 1	1	360	4400	1100	4000	4200	3000
BZD 2	2	360	4400	1100	4000	4200	3000
BZD 3	3	360	4500	1500	4000	4500	3000
BZD 5	5	360	4500	1700	4000	4800	3000
